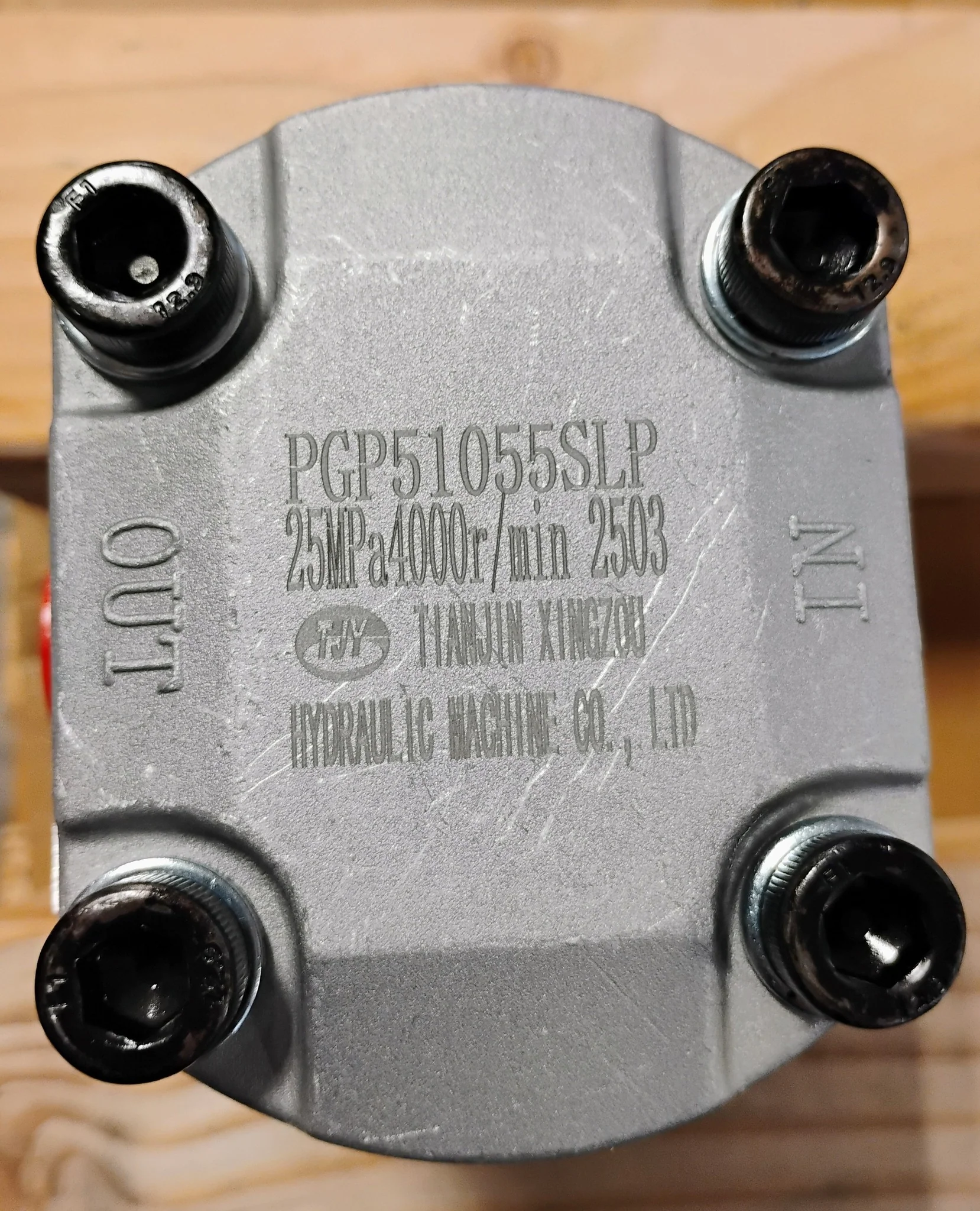

The AGT Two-Section Hydraulic Pump is a compact, high-efficiency unit built for mini skid steers requiring dual hydraulic outputs from a single suction feed. This pump features two independent output chambers, a single M27 threaded suction port, and dual M22 threaded pressure ports, allowing for efficient hydraulic separation between drive and auxiliary functions. It uses a smooth input shaft with keyway, four-bolt mounting pattern, and is designed for seamless integration with AGT power units and attachment systems.

Technical Data

• Pump Type Two-section hydraulic gear pump

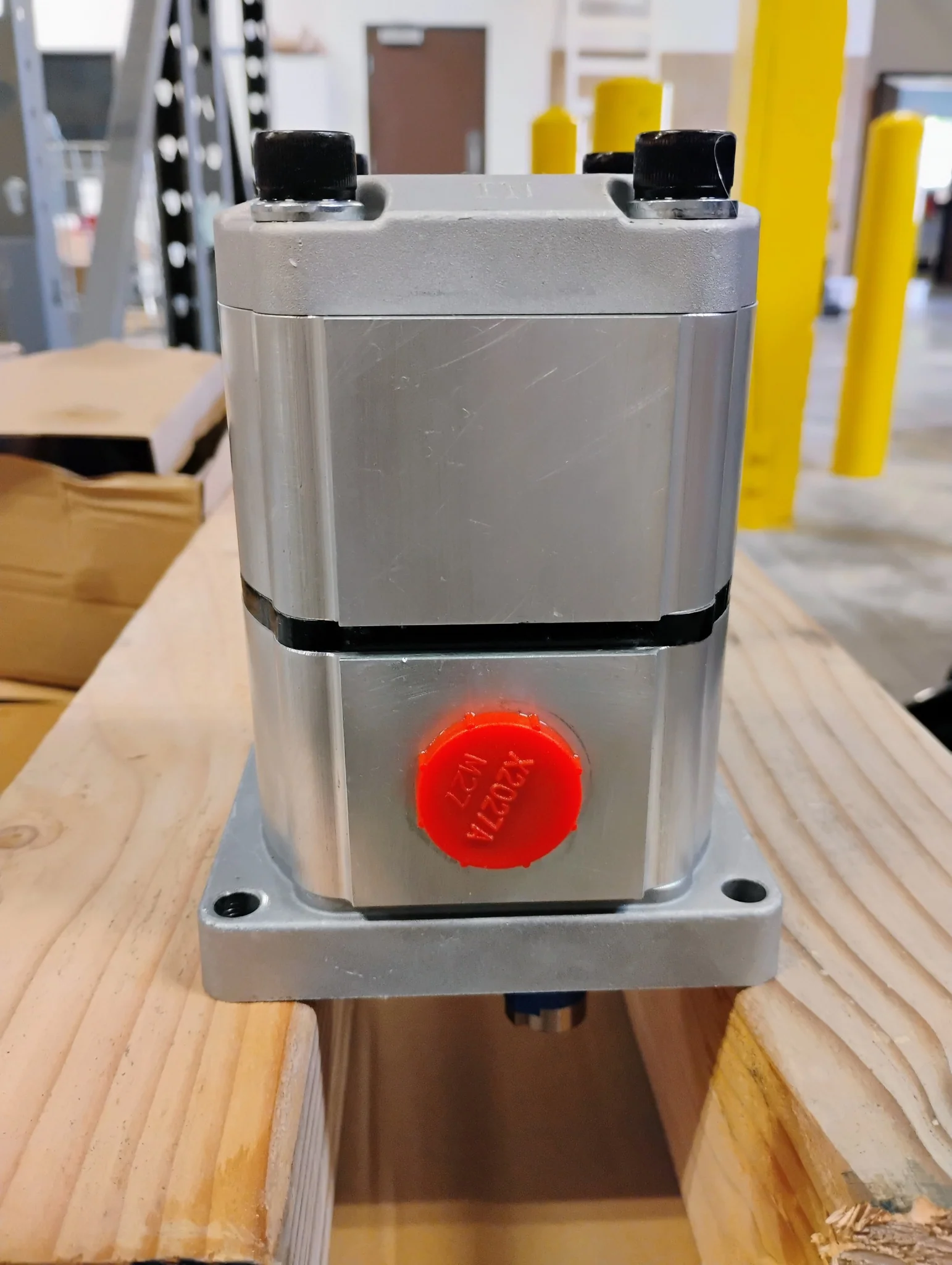

• Suction Port Single inlet, M27 thread

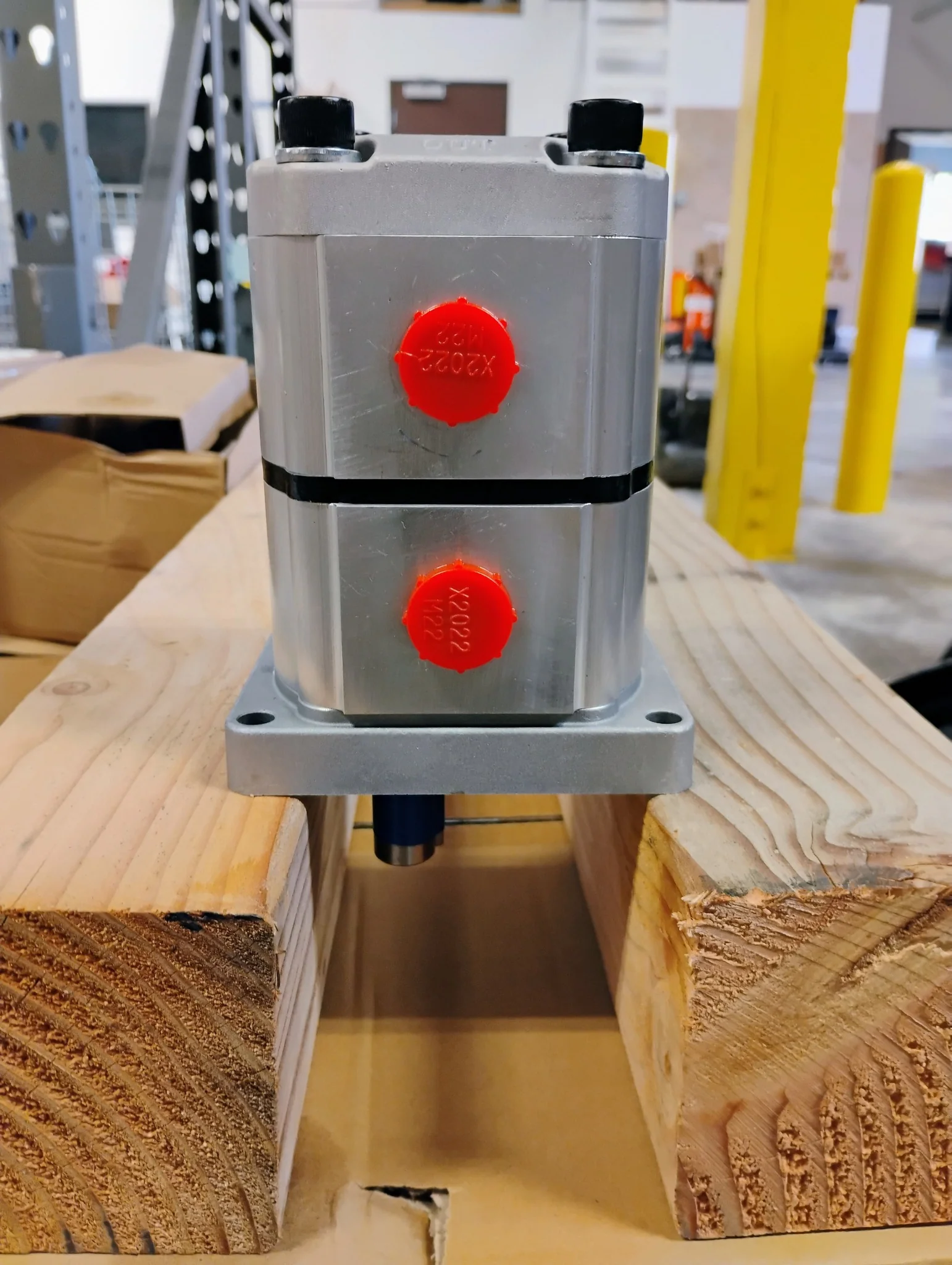

• Output Ports Dual output, M22 thread

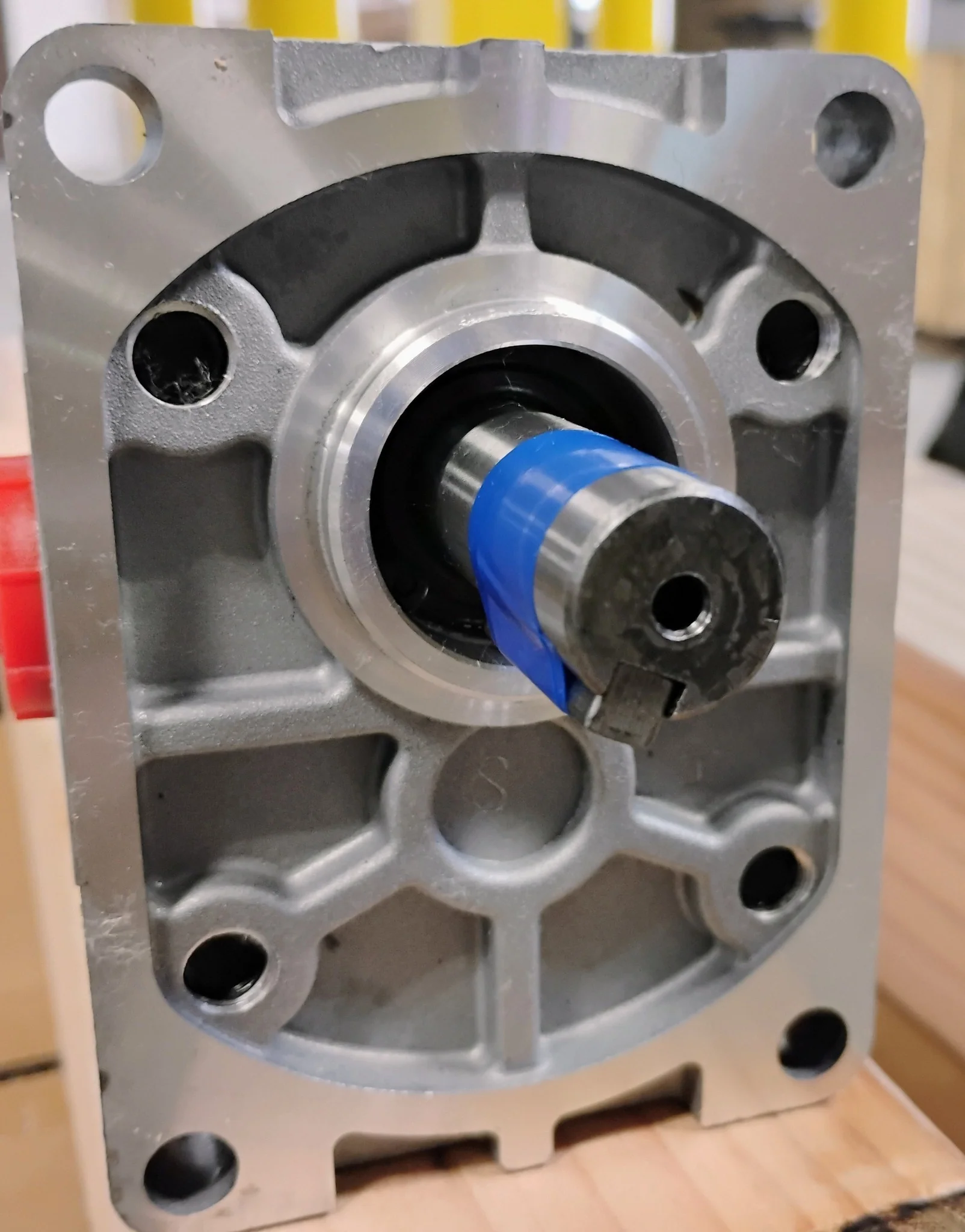

• Input Shaft Smooth shaft with keyway

• Mounting Pattern 4-bolt

• Application Skid steer hydraulic system (main + auxiliary)

• Material Cast housing
