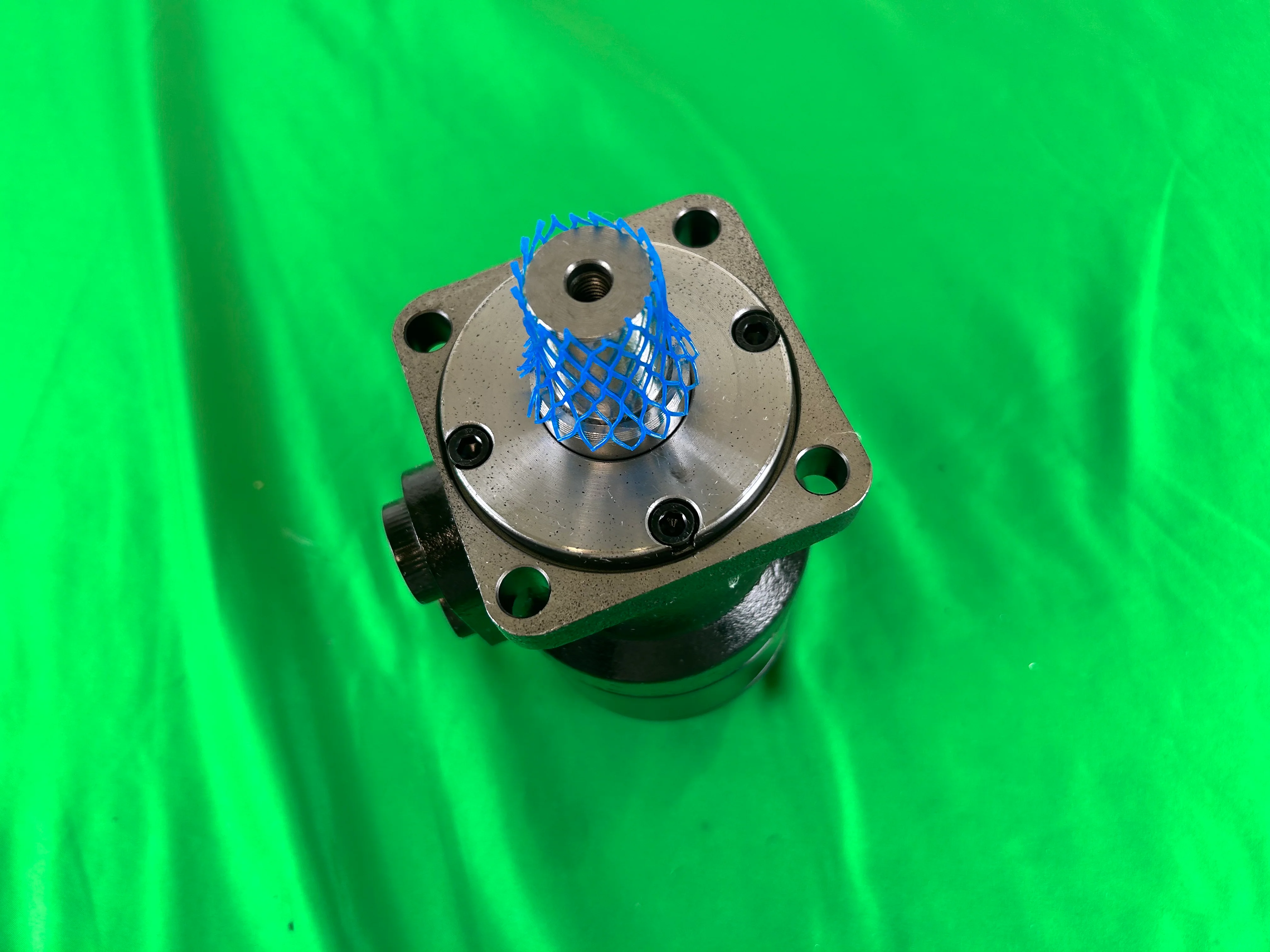

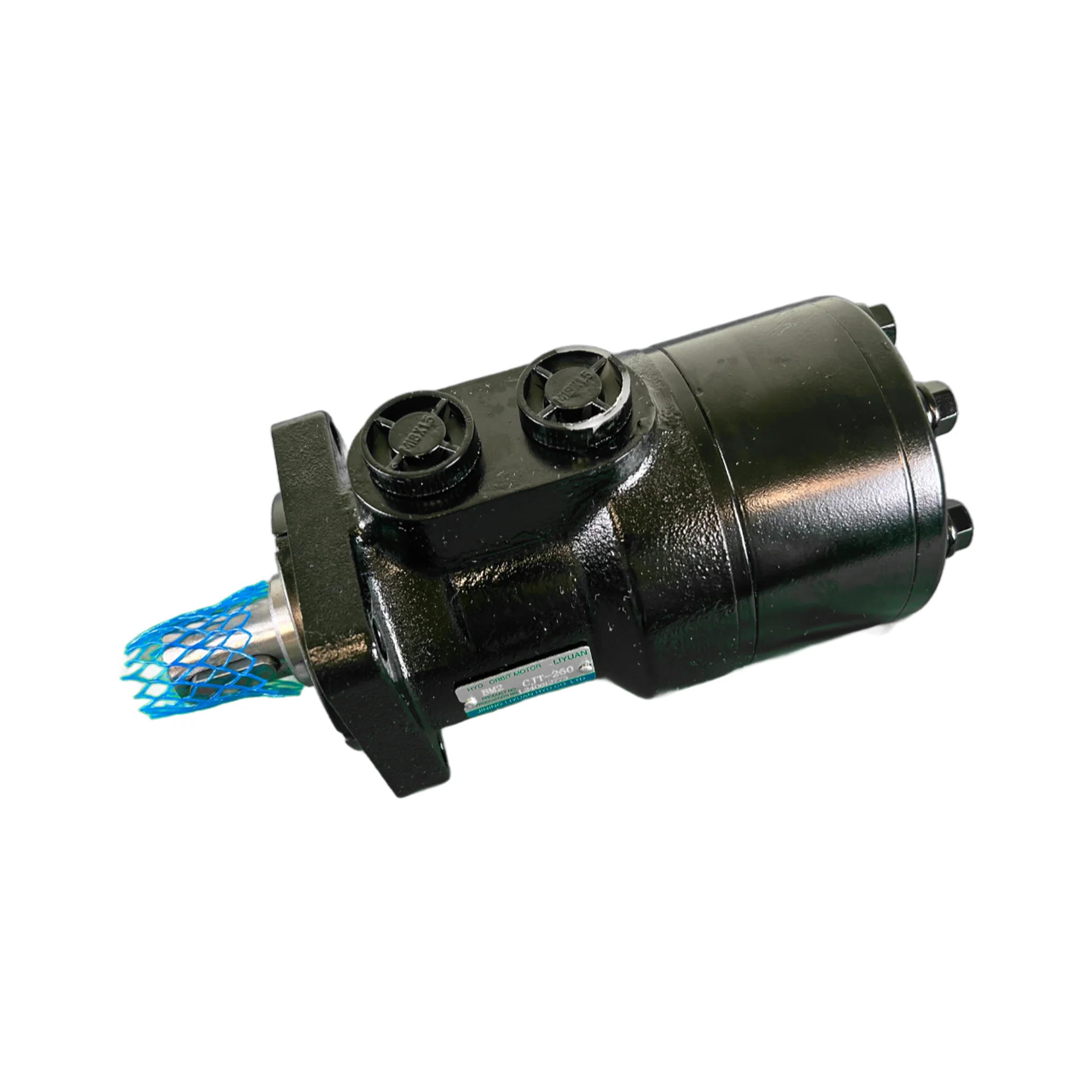

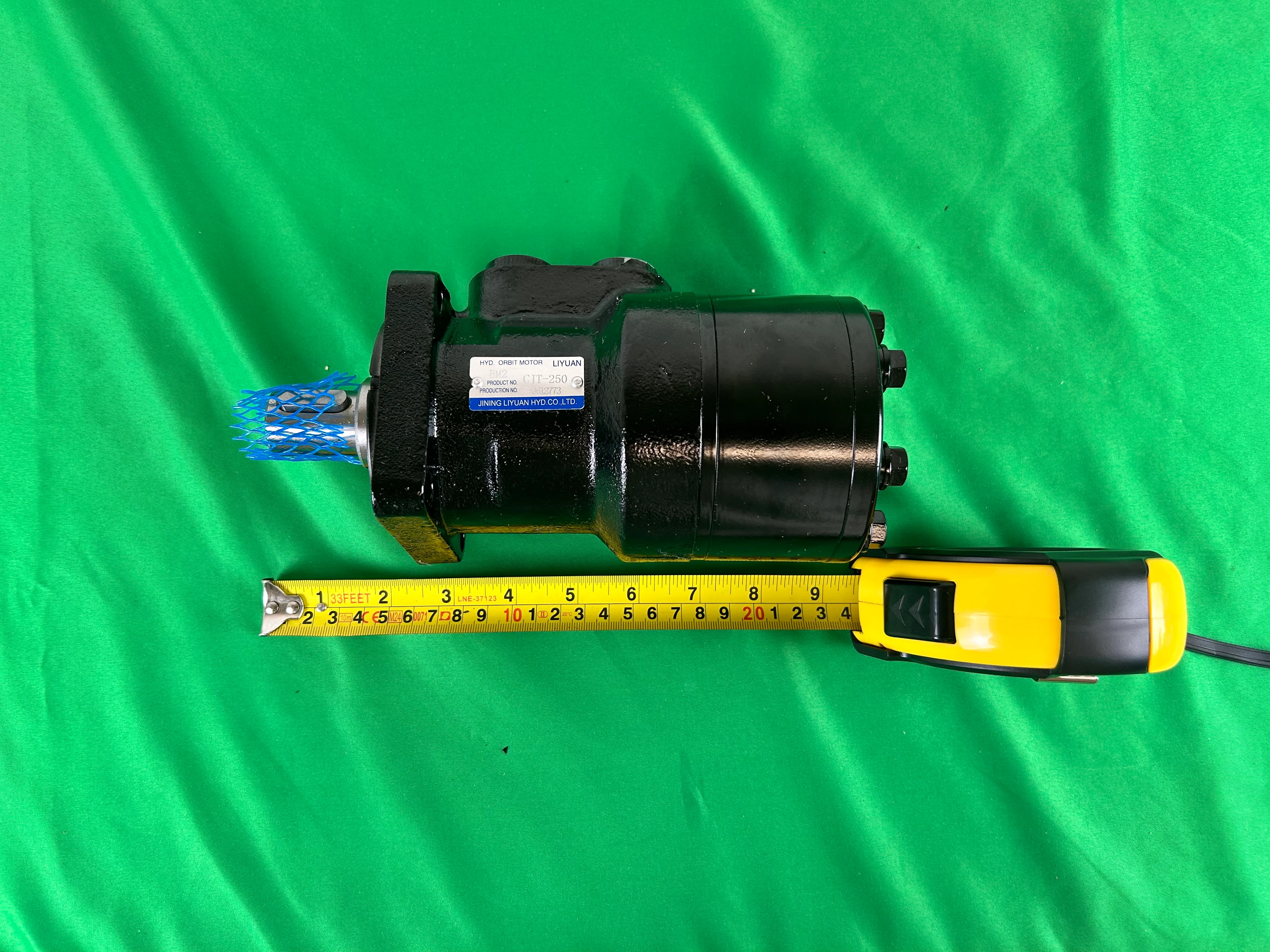

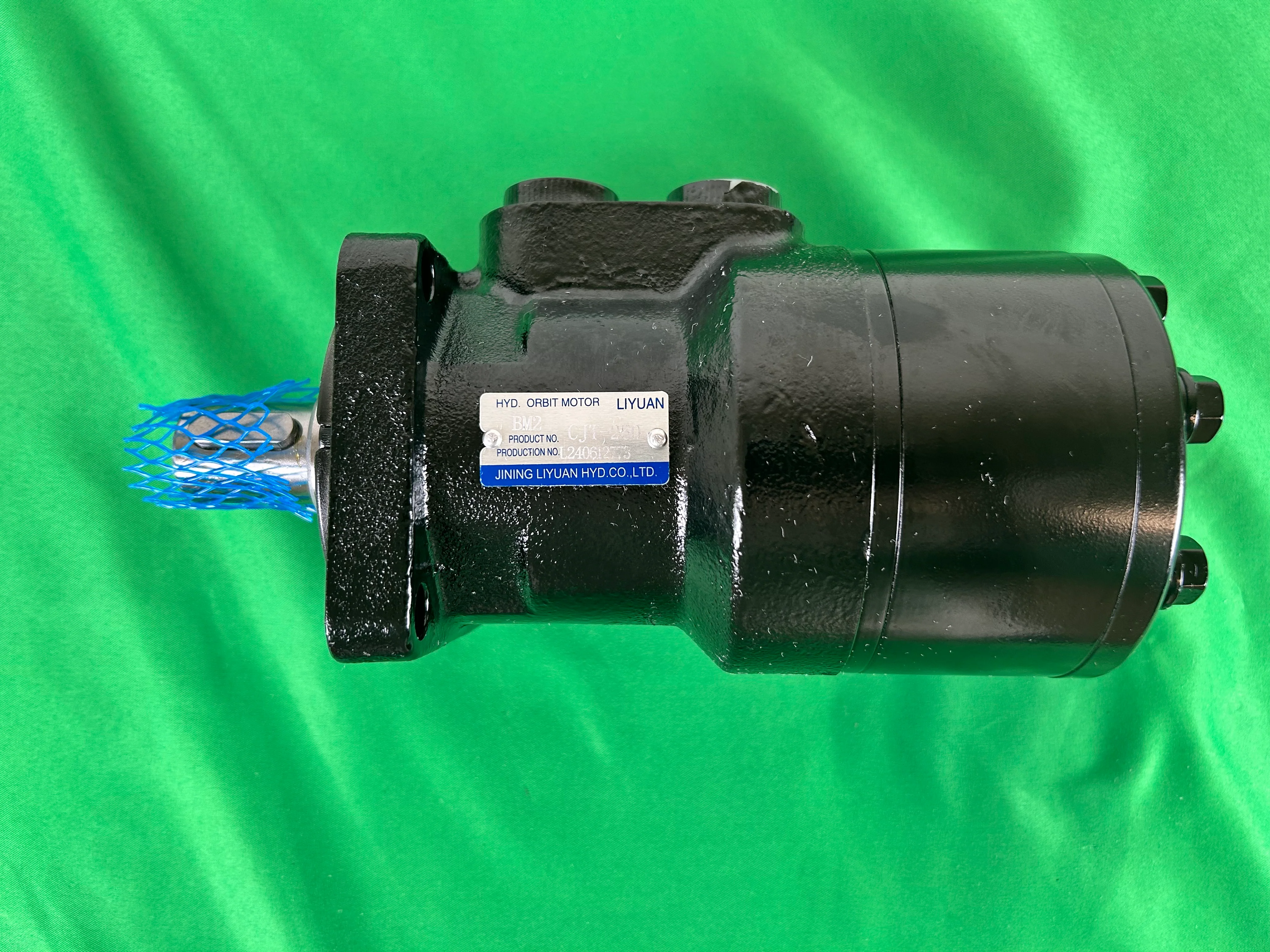

Designed for robust and efficient performance, the CJT-250 Orbital Motor is ideal for applications requiring reliable torque and smooth operation.

Technical Data:

• Displacement: 250 cc/rev

• Max Flow Rate: 15.8 GPM (continuous), 20 GPM (intermittent)

• Max Speed: 240 RPM (continuous), 300 RPM (intermittent)

• Max Pressure: 1595 PSI (continuous), 2900 PSI (intermittent)

• Torque Output: 3403 in-lbs (continuous), 4844 in-lbs (intermittent)

• Shaft Type: 1-inch straight key

• Port Size: 1/2-inch NPT

• Mounting: 2-bolt flange

• Weight: Approximately 20.24 lbs
